Description

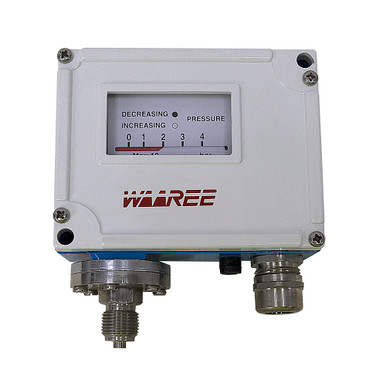

0-4 BAR PRESSURE SWITCH
New. WAAREE CNI-3 industrial pressure switch. Able to process air, oil and water. Commony used on railways, boilers, water treatment, fire fighting systems, and compressors.
SPECIFICATIONS
- Brand WAAREE
- Model CNI-3
- Range 0-4 BAR (0-58 PSI)
- Max. Pressure 25 BAR (362.5 PSI)
- Differential Pressure 0.1 to 0.3 BAR (1.45 to 4.35 PSI)
- Max. Temperature 150° C (302° F)
- Switch 1 SPDT Snap action micro switch
- Contact Rating 15 Amps 250 Volts AC, 0.4 Amps 110 Volts DC
- Electrical Connection P.G. 13.5 mm
- Process Connection Size 3/8″ BSP male standard
- Mounting Direct/Panel
- Size 2-3/8″ x 1-5/8″ x 2-1/2″
- Shpg 3 lbs.
