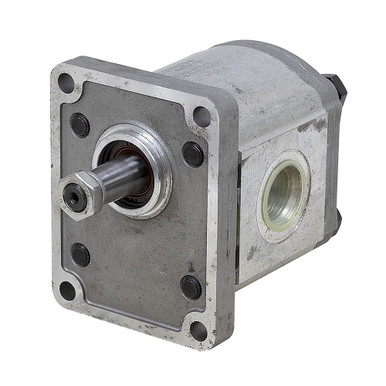

0.89 cu in Hydraulic Gear Pump Casappa PLP20.14S0-82E2-LOD/OC-N-EL-FS-AV-P

Description

0.89 CU IN CASAPPA HYDRAULIC PUMP
New, Casappa model PLP20.14S0-82E2-LOD/OC-N-EL-FS-AV-P hydraulic gear pump. Aluminium mounting flange and rear cover.

SPECIFICATIONS

• Manufacturer Casappa
• Model PLP20.14S0-82E2-LOD/OC-N-EL-FS-AV-P
• Part Number 020000LS 0432960S
• Disp. 0.89 cu. in. / rev.
• Pump Type Gear
• Rotation CCW
• Pressure:
    3625 PSI Cont.
    4350 PSI Int.
• Speed:
    500 RPM min.
    3500 RPM max.
• Flow:
    1.9 GPM min.
    13.2 GPM max.
• Mount 4-bolt 0.35″ holes on 2.75″ x 3.75″ centers
• Shaft European tapered 1:8 w/ key
• Inlet Port SAE 12 side
• Outlet Port SAE 10 rear
• Size 5.6″ x 4.486″ x 3.52″
• Shpg. 8 lbs.
