Description
Product details
| Gross weight |
12.63 kg |
| Net weight |
11.57 kg |
| Gross weight |
12.63 kg |
| Net weight |
11.57 kg |
| EAN |
5702421808313 |
| Actuator size [cm2] |
250 mm2 |
|

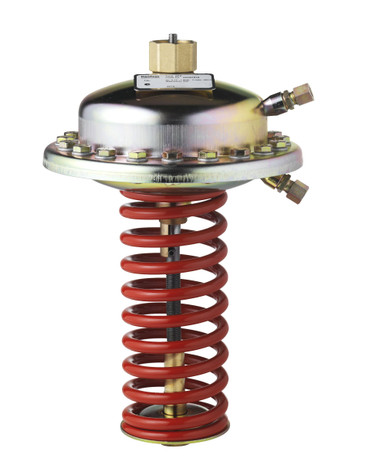

AFP PB25 0,1-0,7 250cm2 yellow |
| Differential pressure setting [bar] [Max] |
0.7 bar |
| Differential pressure setting [bar] [Min] |
0.1 bar |
| Flow control |
No |
| Flow limitation |
No |
| Function |
Diff. press. controller |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
150 °C |
| Mounting version |
Free |
| Operating pressure [bar] [Max] |
25 bar |
| Pressure controller |
Differential pressure controller |
| Pressure nominal [bar] |
25 bar |
| Pressure setting range [bar] [Max] |
0.7 bar |
| Pressure setting range [bar] [Min] |
0.1 bar |
| Product group |
Actuators – Pressure Flow |
| Setting type |
Adjustable |
| Stroke [mm] |
7 mm |
| Type |
AFP |
| Actuator size [cm2] |
250 mm2 |
|
AFP PB25 0,1-0,7 250cm2 yellow |
| Differential pressure setting [bar] [Max] |
0.7 bar |
| Differential pressure setting [bar] [Min] |
0.1 bar |
| Flow control |
No |
| Flow limitation |
No |
| Function |
Diff. press. controller |
| Manufacturer’s name |
Danfoss |
| Media pH [Max] |
10 |
| Media pH [Min] |
7 |
| Media temperature [°C] [Max] |
150 °C |
| Mounting version |
Free |
| Operating pressure [bar] [Max] |
25 bar |
| Pressure controller |
Differential pressure controller |
| Pressure nominal [bar] |
25 bar |
| Pressure setting range [bar] [Max] |
0.7 bar |
| Pressure setting range [bar] [Min] |
0.1 bar |
| Product group |
Actuators – Pressure Flow |
| Setting type |
Adjustable |
| Stroke [mm] |
7 mm |
| Type |
AFP |
AFP PB25 0,1-0,7 250cm2 yellow
