Description
Product details
| Gross weight | 7.03 kg |
| Net weight | 6.83 kg |
| EAN | 5710104034058 |
| Gross weight | 7.03 kg |
| Net weight | 6.83 kg |
| EAN | 5710104034058 |
| Actuator connection | Danfoss standard |
| Connection types | External Thread |
| AB-QM DN 40, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 7.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN40 PN16 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 40 |
| Actuator connection | Danfoss standard |
| Connection types | External Thread |
| AB-QM DN 40, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 7.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN40 PN16 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 40 |

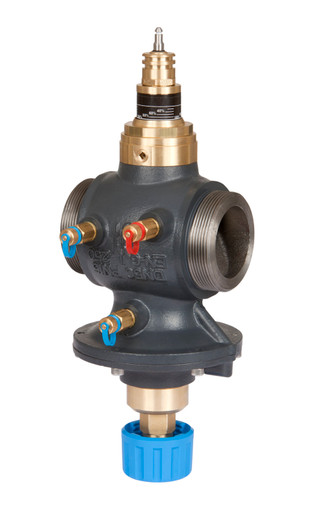

Product name: AB-QM DN40 PN16 3TP
Product details
| Gross weight | 7.03 kg |
| Net weight | 6.83 kg |
| EAN | 5710104034058 |
| Gross weight | 7.03 kg |
| Net weight | 6.83 kg |
| EAN | 5710104034058 |
| Actuator connection | Danfoss standard |
| Connection types | External Thread |
| AB-QM DN 40, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 7.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN40 PN16 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 40 |
| Actuator connection | Danfoss standard |
| Connection types | External Thread |
| AB-QM DN 40, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 7.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN40 PN16 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | With test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 40 |
