Description
Product details
| Gross weight | 14.43 kg |
| Net weight | 14.43 kg |
| EAN | 5710104034072 |
| Gross weight | 14.43 kg |
| Net weight | 14.43 kg |
| EAN | 5710104034072 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| AB-QM DN 50, flange, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 12.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN50 PN16 – Flange 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | Without test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 50 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| AB-QM DN 50, flange, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 12.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN50 PN16 – Flange 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | Without test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 50 |

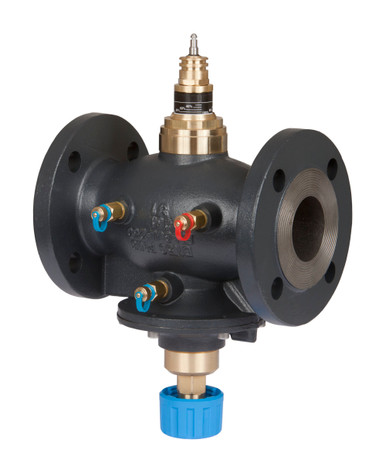

Product name: AB-QM DN50 PN16 – Flange 3TP
Product details
| Gross weight | 14.43 kg |
| Net weight | 14.43 kg |
| EAN | 5710104034072 |
| Gross weight | 14.43 kg |
| Net weight | 14.43 kg |
| EAN | 5710104034072 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| AB-QM DN 50, flange, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 12.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN50 PN16 – Flange 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | Without test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 50 |
| Actuator connection | Danfoss standard |
| Connection types | Flange |
| AB-QM DN 50, flange, with three test plugs, pressure independent balancing and control valve | |
| Differential pressure [kPa] [Max] | 600 kPa |
| Flow nominal [m³/h] | 12.5 m3/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| Product group | Pressure independent balancing and control valves |
| Product name | AB-QM DN50 PN16 – Flange 3TP |
| Starting pressure [kPa] | 30 kPa |
| Stroke [mm] | 10 mm |
| Test plugs | Without test plugs |
| Type | AB-QM |
| Valve body material | Grey iron (EN-GJL-250) |
| Valve size | DN 50 |
