Sale!
003Z1127 Danfoss TVM-H

003Z1127 Danfoss TVM-H

Original price was: $182.57.Current price is: $45.64.

SKU: 003Z1127 Category: Tag:

Description

Product details

Gross weight 0.77 kg
Net weight 0.77 kg
EAN 5702421524756
Gross weight 0.77 kg
Net weight 0.77 kg
EAN 5702421524756

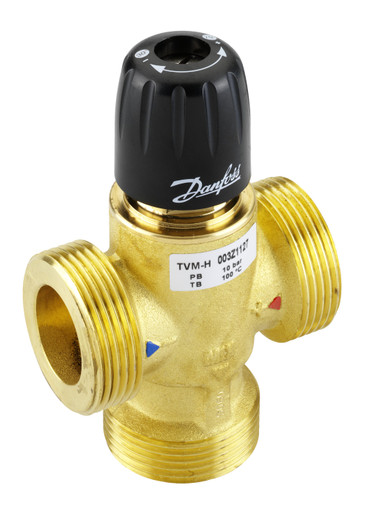

TVM-H DN 25, thermostatic mixing valve
Differential pressure range [bar] [Max] 5 bar
Factory setting [°C] 70 °C
Integrated non-return valve No
Kvs value with non-return valve [m3/h] 2.6 m3/h
Kvs value without non-return valve [m3/h] 3 m3/h
Media temperature [°C] [Max] 100 °C
Pressure class PN 10
Product group Hot water balancing
Product name Mixing valve TVM-H DN 25
Type TVM-H
Valve body material DZR brass + antilimescale treatment
Valve size DN 25
TVM-H DN 25, thermostatic mixing valve
Differential pressure range [bar] [Max] 5 bar
Factory setting [°C] 70 °C
Integrated non-return valve No
Kvs value with non-return valve [m3/h] 2.6 m3/h
Kvs value without non-return valve [m3/h] 3 m3/h
Media temperature [°C] [Max] 100 °C
Pressure class PN 10
Product group Hot water balancing
Product name Mixing valve TVM-H DN 25
Type TVM-H
Valve body material DZR brass + antilimescale treatment
Valve size DN 25

Product name: Mixing valve TVM-H DN 25

Product details

Gross weight 0.77 kg
Net weight 0.77 kg
EAN 5702421524756
Gross weight 0.77 kg
Net weight 0.77 kg
EAN 5702421524756



TVM-H DN 25, thermostatic mixing valve
Differential pressure range [bar] [Max] 5 bar
Factory setting [°C] 70 °C
Integrated non-return valve No
Kvs value with non-return valve [m3/h] 2.6 m3/h
Kvs value without non-return valve [m3/h] 3 m3/h
Media temperature [°C] [Max] 100 °C
Pressure class PN 10
Product group Hot water balancing
Product name Mixing valve TVM-H DN 25
Type TVM-H
Valve body material DZR brass + antilimescale treatment
Valve size DN 25
TVM-H DN 25, thermostatic mixing valve
Differential pressure range [bar] [Max] 5 bar
Factory setting [°C] 70 °C
Integrated non-return valve No
Kvs value with non-return valve [m3/h] 2.6 m3/h
Kvs value without non-return valve [m3/h] 3 m3/h
Media temperature [°C] [Max] 100 °C
Pressure class PN 10
Product group Hot water balancing
Product name Mixing valve TVM-H DN 25
Type TVM-H
Valve body material DZR brass + antilimescale treatment
Valve size DN 25
