Description
Product details
| Gross weight |
0.76 kg |
| Net weight |
0.73 kg |
| Gross weight |
0.76 kg |
| Net weight |
0.73 kg |
| EAN |
5710104042398 |
| Approval standard |
ISO 7/1 |
| Connection size |
Rp 1 1/4 |
| Connection types |
Internal thread |
|

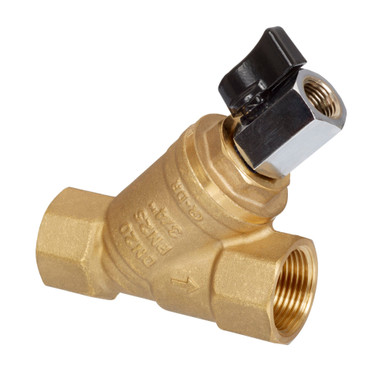

FVR-D strainer DN32 Rp1 1/4 |
| Diameter [mm] |
32 mm |
| Kvs values [m³/h] |
17 m3/h |
| Manufacturer’s name |
Danfoss |
| material |
DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mesh size [mm] |
0.5 mm |
| Number of meshes [n/cm²] |
50 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
25 bar |
| Product group |
Auxiliary Products |
| Strainer type |
With draining ball valve |
| Type |
FVR-D |
| Approval standard |
ISO 7/1 |
| Connection size |
Rp 1 1/4 |
| Connection types |
Internal thread |
|
FVR-D strainer DN32 Rp1 1/4 |
| Diameter [mm] |
32 mm |
| Kvs values [m³/h] |
17 m3/h |
| Manufacturer’s name |
Danfoss |
| material |
DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mesh size [mm] |
0.5 mm |
| Number of meshes [n/cm²] |
50 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
25 bar |
| Product group |
Auxiliary Products |
| Strainer type |
With draining ball valve |
| Type |
FVR-D |
FVR-D strainer DN32 Rp1 1/4
Product details
| Gross weight |
0.76 kg |
| Net weight |
0.73 kg |
| Gross weight |
0.76 kg |
| Net weight |
0.73 kg |
| EAN |
5710104042398 |
| Approval standard |
ISO 7/1 |
| Connection size |
Rp 1 1/4 |
| Connection types |
Internal thread |
|
FVR-D strainer DN32 Rp1 1/4 |
| Diameter [mm] |
32 mm |
| Kvs values [m³/h] |
17 m3/h |
| Manufacturer’s name |
Danfoss |
| material |
DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mesh size [mm] |
0.5 mm |
| Number of meshes [n/cm²] |
50 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
25 bar |
| Product group |
Auxiliary Products |
| Strainer type |
With draining ball valve |
| Type |
FVR-D |
| Approval standard |
ISO 7/1 |
| Connection size |
Rp 1 1/4 |
| Connection types |
Internal thread |
|
FVR-D strainer DN32 Rp1 1/4 |
| Diameter [mm] |
32 mm |
| Kvs values [m³/h] |
17 m3/h |
| Manufacturer’s name |
Danfoss |
| material |
DZR brass CuZn36Pb2As |
| Media temperature [°C] [Max] |
130 °C |
| Media temperature [°C] [Min] |
-10 °C |
| Medium alternative |
Glycolic water up to 50% |
| Mesh size [mm] |
0.5 mm |
| Number of meshes [n/cm²] |
50 |
| Permissible media |
Circulation water |
| Pressure nominal [bar] |
25 bar |
| Product group |
Auxiliary Products |
| Strainer type |
With draining ball valve |
| Type |
FVR-D |
