Description
Product details
| Gross weight | 0.78 kg |
| Net weight | 0.63 kg |
| EAN | 5702428148863 |
| Gross weight | 0.78 kg |
| Net weight | 0.63 kg |
| EAN | 5702428148863 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 197 in |
| Capillary tube length [mm] | 5000 mm |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 95 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Packing format | Multi pack |
| Parts Program name | TE 20 |
| Pressure equalization | Externally equalized |

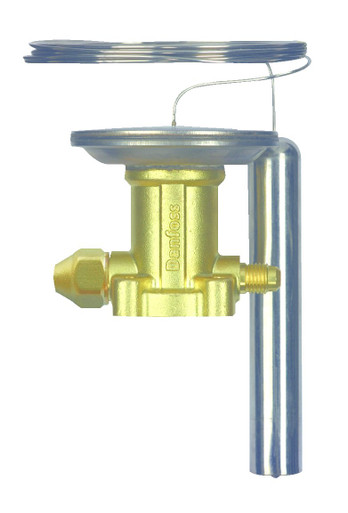

| Product description | Thermostatic Expans. Valve |
| Product family name | TE 5 – 55 |
| Product group | Expansion valves |
| Product name | Element for expansion valve |
| Quantity per packing format | 9 pc |
| Refrigerants | R407C |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TE 20 |
| Type designation | Element |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 197 in |
| Capillary tube length [mm] | 5000 mm |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 95 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Packing format | Multi pack |
| Parts Program name | TE 20 |
| Pressure equalization | Externally equalized |
| Product description | Thermostatic Expans. Valve |
| Product family name | TE 5 – 55 |
| Product group | Expansion valves |
| Product name | Element for expansion valve |
| Quantity per packing format | 9 pc |
| Refrigerants | R407C |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TE 20 |
| Type designation | Element |
Refrigerants: R407C
Product details
| Gross weight | 0.78 kg |
| Net weight | 0.63 kg |
| EAN | 5702428148863 |
| Gross weight | 0.78 kg |
| Net weight | 0.63 kg |
| EAN | 5702428148863 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 197 in |
| Capillary tube length [mm] | 5000 mm |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 95 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Packing format | Multi pack |
| Parts Program name | TE 20 |
| Pressure equalization | Externally equalized |
| Product description | Thermostatic Expans. Valve |
| Product family name | TE 5 – 55 |
| Product group | Expansion valves |
| Product name | Element for expansion valve |
| Quantity per packing format | 9 pc |
| Refrigerants | R407C |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TE 20 |
| Type designation | Element |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 197 in |
| Capillary tube length [mm] | 5000 mm |
| Equalization connection type | FLARE |
| Equalization size [in] | 1/4 IN |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 95 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Packing format | Multi pack |
| Parts Program name | TE 20 |
| Pressure equalization | Externally equalized |
| Product description | Thermostatic Expans. Valve |
| Product family name | TE 5 – 55 |
| Product group | Expansion valves |
| Product name | Element for expansion valve |
| Quantity per packing format | 9 pc |
| Refrigerants | R407C |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TE 20 |
| Type designation | Element |
