Description
Product details
| Gross weight | 1.76 kg |
| Net weight | 1.72 kg |
| EAN | 5702421513033 |
| Gross weight | 1.76 kg |
| Net weight | 1.72 kg |
| EAN | 5702421513033 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control signal type | 3-point |
| AMV 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 7 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 35 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control signal type | 3-point |
| AMV 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 7 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 35 |

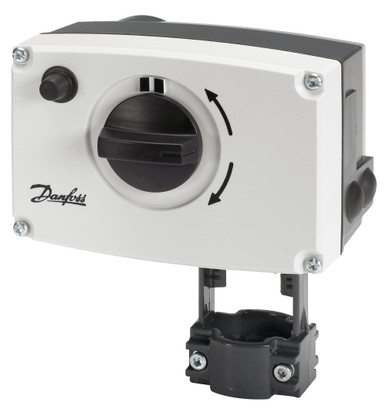

AMV 3524V 3s/mm 15mm 600N
Product details
| Gross weight | 1.76 kg |
| Net weight | 1.72 kg |
| EAN | 5702421513033 |
| Gross weight | 1.76 kg |
| Net weight | 1.72 kg |
| EAN | 5702421513033 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control signal type | 3-point |
| AMV 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 7 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 35 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | HVAC |
| Closing force [N] | 600 N |
| Control signal type | 3-point |
| AMV 35 24V 3s/mm 15mm 600N | |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Manufacturer’s name | Danfoss |
| Position feedback | no – potentiometer needed |
| Power consumption [W] | 7 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 1 |
| Speed type | Fast |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 15 mm |
| Supply voltage range [V] AC | 24 V |
| Turn time [s] | 0 s |
| Type | AMV 35 |
