Description

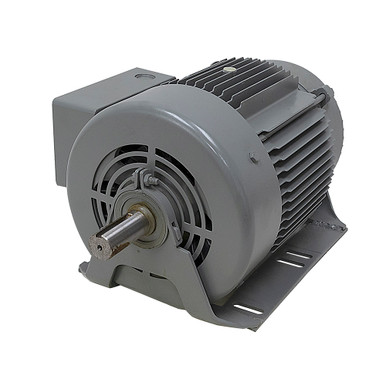

1/.33 HP 1450/970 RPM 2-SPEED 230 VOLT AC MOTOR
Old unused inventory, General Electric 5KC184AL929 base mount motor.
SPECIFICATIONS
- Power 1 & 1/3 HP
- Voltage 230 AC
- Phase 1
- Frequency 50 Hz
- Amperage 7/4.5 Amps
- Speed 1450/970 RPM
- Rotation Reversible
- Service Factor 1
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 184TY
- Base Mount Six 0.39″ dia. x 1-1/4″ slotted holes on 1″, 5-1/2″ x 7-1/2″ centers
- Shaft 1-1/8″ dia. x 2-1/2″ overall length w/ 1/4″ x 2″ long keyway
- Size 16.5″ x 12″ x 9.5″
- Shpg. 84 lbs.
