Description

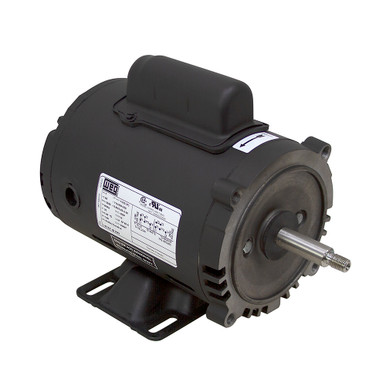

1/2 HP 3500 RPM MOTOR
New, WEG model W01 1GMO01C0X0X capacitor-start motor.
SPECIFICATIONS
- Brand WEG
- Model Number W01.1GMO01C0X0X
- Power 1/2 HP
- Voltage 208-230/115 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 6.60/3.65-3.30 Amps
- Speed 3500 RPM
- Rotation CCW
- Service Factor 1.60
- Bearings Unknown
- Thermal Overload Protection None
- Enclosure ODP
- Duty Continuous
- Frame W56J
- Base Mount Four 1-3/16″ x 5/16″ elliptical slots on 4″ x 4″ to 6-7/8″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 2-1/2″ overall length w/ 7/16-20 thread 1/2″ long
- Size 8.125″ x 6.5″ x 7.5″
- Shpg. 23 lbs.
