Description

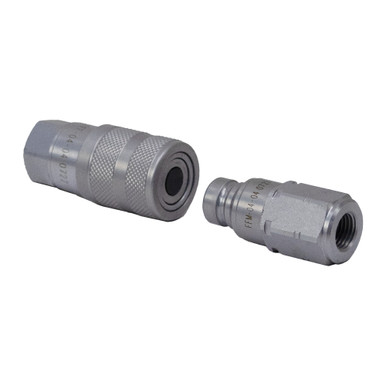

1/4″ NPT FLUSH FACE QUICK COUPLER ISO 16028
Brand new, Horizon KSP1 series flush face quick coupler. Includes body and tip. Flush face design is easily cleaned, minimizes oil spillage during disconnection and air inclusion during connection. One-handed, push-to-connect convenience. Commonly used on many models of skid-steer loaders and construction and agricultural equipment. Plated steel construction with nitrile NBR seals and Teflon backup ring.
Interchangeable with Parker FEM, Faster FF, Holmburg Series A and other brands of quick couplings that conform to International Standard ISO 16028 dimensional requirements.
SPECIFICATIONS
- Brand Horizon
- Series KSP1
- ISO Standard 16028
- ISO Body Size 1/4″
- Ports 1/4″ NPT
- Tip Diameter 0.64″
- Pressure, Working 4565 PSI Max
- Pressure, Burst 18275 PSI
- Flow 3.17 GPM Max
- Temperature Range -25° C to 125° C
- Oil Spillage (at disconnect) 0.008 cc
- Wrench Flats 7/8″
- Coupled Length 3-3/4″
- Shpg. 1 lbs.
Body for coupler
| 1/4″ NPT Flush Face Quick Coupler Body ISO 16028 Horizon FFF-04-04 |
904348 |
Tip for coupler
| 1/4″ NPT Flush Face Quick Coupler Tip ISO 16028 Horizon FFM-04-04 |
904349 |
Dust cap for coupler tip
| Dust Cap For 1/4″ Flush Face Coupler Tip 9-12275-T Horizon FFM04 CAP/H4034 |
904742 |
Dust plug for coupler body
| Dust Plug For 1/4″ Flush Face Coupler Body Horizon FFF04 PLUG |
904743 |
