Description

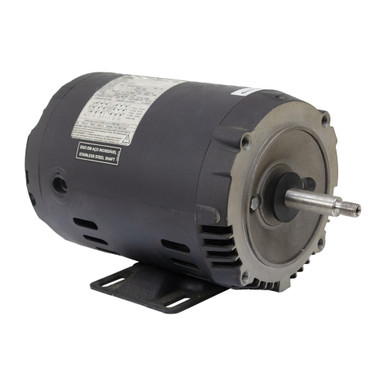

1.5 HP 3460 RPM 230/460 VOLT AC 3 PHASE MOTOR
Old unused inventory, WEG model TO01C0X0X motor.
SPECIFICATIONS
- Power 1-1/2 HP
- Voltage 230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 4.22/2.11 Amps
- Speed 3460 RPM
- Rotation CCW
- Service Factor 1.20
- Bearings Unknown
- Thermal Overload Protection None
- Enclosure ODP
- Duty Continuous
- Frame 56J
- Base Mount Four 1-3/16″ x 5/16″ elliptical slots on 3″ x 3-7/8″ to 6-7/8″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 2-1/2″ overall length w/ 7/16″-20 thread 1/2″ long
- Size 9-3/8″ x 6-1/2″ x 6-1/2″
- Shpg. 28 lbs.
