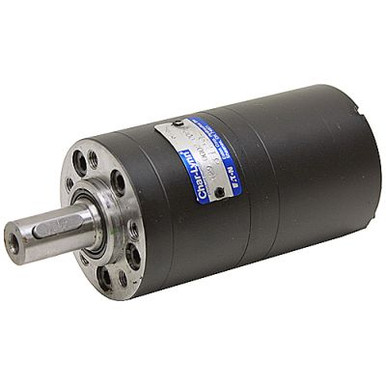

1.93 cu in Hydraulic Motor Char-Lynn 129-0004

Description

1.93 cu in CHAR-LYNN 129-0004 HYD MOTOR
Brand new CHAR-LYNN J-2 series hydraulic motors. Powerful Geroler motor in a compact size.

SPECIFICATIONS

• Disp. 1.93 cu. in. / rev.
• Motor Type Geroler
• Pressure:
    1750 PSI cont.  2175 PSI int.
• Torque:
    446 in-lbs. cont.  546 in-lbs. int.
• Speed:
    650 RPM cont.  767 RPM int.
• Flow:
    5.5 GPM cont.  6.5 GPM int.
• Rotation Reversible
• Mount 5 Bolts on 1.775″ dia. B.C.,
            1.241″ dia. pilot
• Shaft 5/8″ dia. x 1.42″
           w/ 3/16″ keyway
• Ports SAE 6
• Case Drain SAE 3
• Size 2-3/8″ dia. x 4-7/8″
• Shpg. 6.1 lbs.
