Description

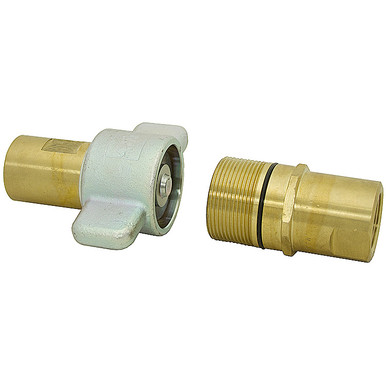

1″ NPT THREAD-TO-CONNECT COUPLING
Brand new, HORIZON KST series thread-to-connect coupling. Includes body and tip. Heavy duty, thread-to-connect design can be connected under pressure, with little or no spillage. Commonly used on oil-field equipment and for dump trailer wet-line kits.
Solid brass body, zinc-plated steel “wings”, nitrile NBR seals and Teflon backup ring. Interchangeable half-for-half with the following: PARKER 6100, PERFECTING W, FASTER FB, SAFEWAY S51, SNAPTITE 78, TOMCO A51 and AEROQUIP 5100.
SPECIFICATIONS
- Brand Horizon
- Series KST
- Body Size 1″
- Ports 1″ NPT
- Pressure, Working 3000 PSI Max
- Pressure, Burst 9000 PSI
- Flow 42.2 GPM Max
- Temperature Range -25° C to 125° C
- Oil Spillage (at disconnect) 0.2 cc
- Width Across “Wings” 4-1/2″
- Coupled Length 6-1/2″
- Shpg. 5 lbs.
Body for coupler
| 1″ NPT Brass Wing Nut Quick Coupler Body Only Horizon WF-16-16 |
903073 |
Tip for coupler
| 1″ NPT Brass Wing Nut Quick Coupler Tip Only Horizon WM-16-16 |
903072 |
Dust cap for coupler tip
| Dust Cap For 1″ Wing Nut Coupler Tip Horizon W16M |
903113 |
Dust plug for coupler body
| Dust Plug For 1″ Wing Nut Coupler Body Horizon W16F |
903114 |
