Description

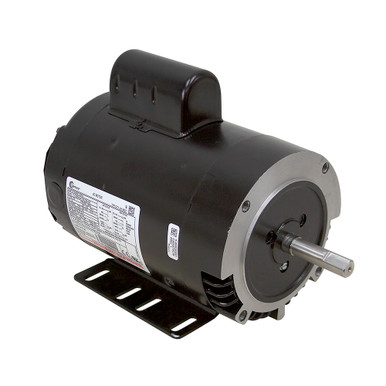

1 HP 1725/1425 RPM MOTOR
New, CENTURY model C56AA79C28-03 capacitor-start motor. Thermal overload protection with manual reset.
SPECIFICATIONS
- Brand Century
- Model Number C56AA79C28-03
- Power 1.0 HP
- Voltage 208-230/115 Volt AC
- Phase 1
- Frequency 60/50 Hz
- Amperage 6.5-6.3/12.6 Amps
- Speed 1725/1425 RPM
- Rotation Reversible
- Service Factor 1.25
- Bearings Ball Bearing
- Thermal Overload Protection Manual
- Enclosure ODP
- Duty Continuous
- Frame L56C
- Base Mount Eight 1-3/16″ x 5/16″ elliptical slots on 1-7/8″ to 3″ to 4-7/8″ x 3-7/8″ to 5-9/16″ centers
- Face Mount Four 3/8″-16 threaded holes in motor face on 5-7/8″ B.C., 4-1/2″ pilot
- Shaft 5/8″ dia. x 2-3/4″ overall length w/ flat 7/8″ long from end of shaft
- Size 10.125″ x 7.5″ x 8.75″
- Shpg. 36.7 lbs.
