Description

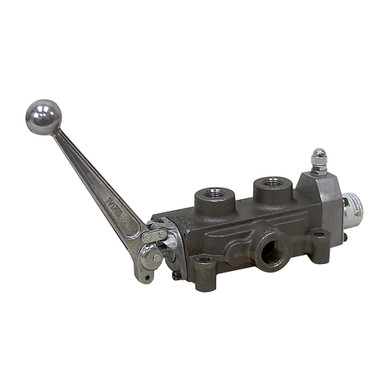

1 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL LOG SPLITTER VALVE
Brand new CROSS CD11FCA0 series directional control valve for operating double acting cylinders. Features include monoblock construction, built-in pressure relief valve, open center, side inlet/outlet and top work ports. Handle assembly can be mounted to have the handle be push or pull to extend the cylinder.
SPECIFICATIONS
- Brand Cross Mfg.
- Model SCD2E
- Cross Item 108360
- Open Center
- Spools One
- Flow 30 GPM max.
- Pressure 2500 PSI rated
- Relief Valve 2000 PSI, fixed
- Detent Release Pressure 1000 PSI
- In/Out Ports 3/4″ NPT
- Work Ports 1/2″ NPT
- Mount Three, 3/8″ dia. holes
- Size 12.62″ x 7.41″ x 4.62″
- Shpg. 12 lbs.
Spool Details:
Spool 1 Double-acting cylinder spool, spring to center on spool in/auto detent on spool out
