Description
12 VOLT DC SOLENOID BIDIRECTIONAL BLOCKING VALVE

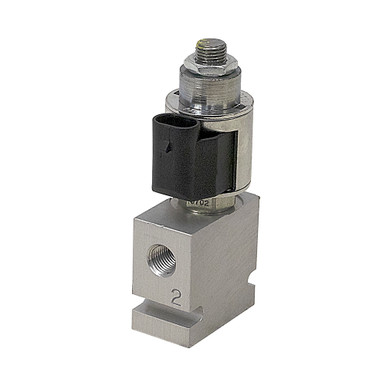

New Hydraforce SV08-24 solenoid-operated, 2 port, normally closed, direct-acting, spool-type, screw in hydraulic cartridge valve, designed to operate as a bidirectional blocking valve in low flow circuits. When de-energized, the cartridge blocks flow in both directions. When energized, the cartridge’s spool shifts to open the bidirectional flow
path.
SPECIFICATIONS
- Brand Hydraforce
- Cartridge Number SV08-24
- Coil Number 4303412
- Body Number 87518926
- Closed Center
- Flow 4.5 GPM
- Pressure 3000 psi
- Voltage 12 Volt DC
- Amperage 1.36 Amps
- Connector Metri-Pack 150 2M
- In/Out Ports 1/4″ NPT
- Mount 2 hole side 2″ c/c
- Size 4.75″ x 2″ x 1.4375″
- Shpg 2 lbs.
