Description

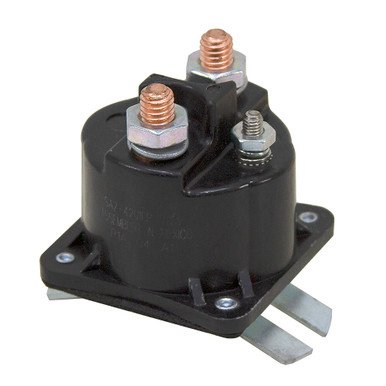

12 VOLT DC INTERMITTENT DUTY SOLENOID
Brand new, Hydraulic Technologies model 4795-AA motor starter solenoid. Three terminals, plastic housing. Copper contact material. Grounded through case. Apply 12 volts DC positive (+) to the small terminal to activate. IP67 water-resistant case.
SPECIFICATIONS
- Brand Hydraulic Technologies
- Model Number 4795-AA
- Voltage 12 Volt DC
- Model Listed On Relay SAZ-4201FP
- Contacts SPST-NO
- Current Carry Rating 100 Amps @ 12 Volt DC
- Current Inrush 600 Amps
- Duty Intermittent, 25% duty cycle, 2 minutes max. on time
- Coil Ohms 3
- Main Terminals 5/16″-18
- Center Terminal 10-32
- Mounting Curved 2.22″ Radius, 0.28″ slots
- Size 2.75″ x 2.625″ x 2.125″
- Shpg. 0.65 lbs.
