Description

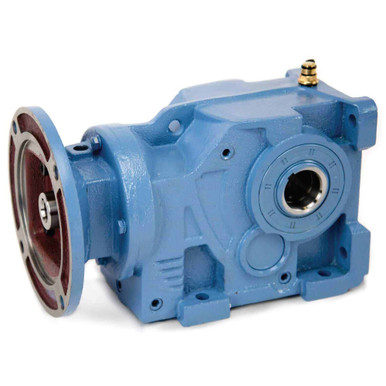

122.94:1 Size 77 3.42 HP Helical Bevel Gear Reducer WWE KHN77-120/1-H-143TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN77-120/1-H-143TC
- Box Size 77
- Gear Stages 3
- Nominal Ratio 120:1
- Actual Ratio 122.94:1
- Output RPM @ 1750 RPM Input 14 RPM
- Input HP 3.42 HP max.
- Output Torque 8125 in.-lbs. max.
- Over-Hung Load 3090 lbs. max.
- Motor Mount 143TC
- Output Bore 2″ Hollow Keyed, 1/2″ Keyway
- Horizontal Foot Mount Four 0.69″ holes on 6.5″ x 5.91″ centers
- Vertical Foot Mount Four 0.69″ holes on 6.5″ x 7.87″ centers
- Cross Reference SEW K77
- Size 14.69″ x 9.0″ x 11.54″
- Shpg. 134 lbs.
