14.83 cu inHydraulic Bearingless Motor Danfoss 151-2477

Description

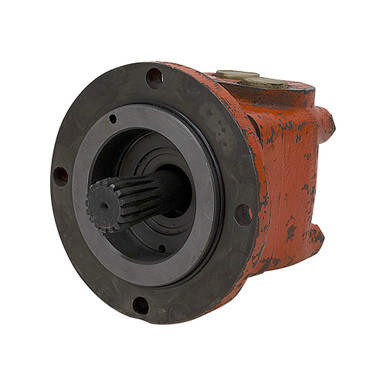

14.83 cu in DANFOSS 151-2477 HYDRAULIC MOTOR
Unused old inventory. DANFOSS DS-250 series low speed high torque bearingless hydraulic motor. Bearingless motor drives must utilize a bearing supported internal spline to mate to motor drive shaft.

SPECIFICATIONS

• Brand Danfoss
• Model 151-2477
• Family DS-250
• Displacement 14.83 cu. in. / rev.
• Motor Type Gerotor
• Rotation Reversible
• Pressure:
     1400 PSI cont.
     1900 PSI int.
• Torque:
     2700 in-lbs. cont.
     3670 in-lbs. int.
• Speed:
     250 RPM cont.
     315 RPM int.
• Flow:
     15.9 GPM cont.
     19.8 GPM int.
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 1.85″ long, 6B splined, tapped 1/4″-20
• Ports 0.45″ port holes on 1.83″ bolt centers
• Case Drain None
• Size 5.94″ x 5.11″ x 3.81″
• Shpg. 19 lbs.
