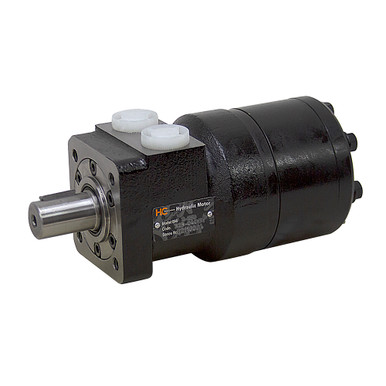

15.25 cu in Hydraulic Motor Hydro Custom BM2H-HBACADB

Description

15.25 cu in Hydraulic Motor Hydro Custom BM2H-HBACADB
Brand new Hydro Custom BM2 series motor. Gerolor power element. Interchangeable with Char-Lynn “S” series motors.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM2H-HBACADB
• Manufacturer Part Number CUM 322-0406H
• Displacement 15.25 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    1595 PSI cont.
    2900 PSI int.
• Torque
    3403 in-lbs. cont.
    4844 in-lbs. int.
• Speed
    240 RPM cont.
    300 RPM int.
• Flow
    15.8 GPM cont.
    20 GPM int.
• Mount 4 bolts on 3.25″ B.C.
• Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 8.925″ x 3.622″ x 3.622″
• Shpg. 23 lbs.
