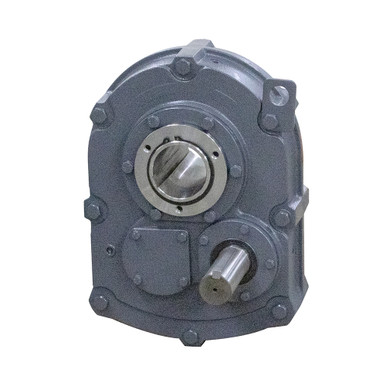

15:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SCSMR5-15/1
- Ratio 15:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-5/16″ diam. X 5-3/4″ w/ 1/2″ keyway
- Output Bore see table below
- Size 13-1/8″ x 18-5/16″ x 8-3/16″
- Shpg. 235 lbs.
Service Class I
Service Class II
Service Class III
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 7.5 |
22-24 |
19267-17661 in-lbs |
7.5 |
24-34 |
17661-12467 in-lbs |
5 |
24-34 |
11774-8311 in-lbs |
| 10 |
24-34 |
23548-16622 in-lbs |
10 |
138-54 |
14873-10466 in-lbs |
7.5 |
38-52 |
11154-8151 in-lbs |
| 15 |
38-54 |
22309-15699 in-lbs |
15 |
58-80 |
14616-10597 in-lbs |
10 |
54-80 |
10466-7065 in-lbs |
| 20 |
54-78 |
20932-14491 in-lbs |
20 |
78-110 |
14491-10276 in-lbs |
15 |
85-110 |
9973-7707 in-lbs |
| 25 |
70-95 |
20184-14873 in-lbs |
25 |
100-125 |
14129-11303 in-lbs |
20 |
110-125 |
10276-9043 in-lbs |
| 30 |
85-115 |
19947-14743 in-lbs |
– |
– |
– |
– |
– |
– |
| 40 |
110-125 |
20551-18085 in-lbs |
– |
– |
– |
– |
– |
– |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 2-3/16″ |
602638 |
2-7/16″ |
602639 |
| 2-1/2″ |
602640 |
2-11/16″ |
602641 |
| 2-15/16″ |
602642 |
OTHER OPTIONS
| MOTOR MOUNT |
602612 |
| BELT GUARD |
602654 |
| SCREW CONVEYOR FLANGE |
604181 |
| SCREW CONVEYOR DRIVE SHAFT |
604184 |
