Description

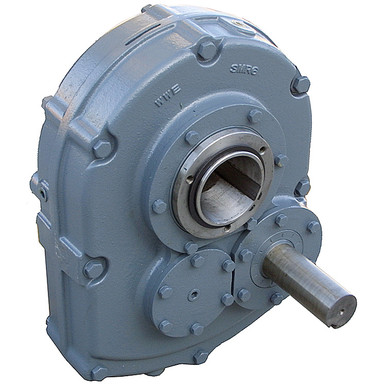

15:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SMR6-15/1
- Ratio 15:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 2-3/16″ diam. x 6-1/16″ w/ 1/2″ keyway
- Output Bore see table below
- Size 15-1/8″ x 21-5/16″ x 9-5/8″
- Shpg. 345 lbs.
| Service Class I |
Service Class II |
Service Class III |
| HP |
RPM |
Torque |
HP |
RPM |
Torque |
HP |
RPM |
Torque |
| 15 |
20-32 |
45226-28266 in-lbs |
10 |
19-29 |
31738-20794 in-lbs |
7.5 |
20-32 |
22613-14133 in-lbs |
| 20 |
27-45 |
44668-26801 in-lbs |
15 |
28-47 |
32304-19245 in-lbs |
10 |
27-45 |
22334-13400 in-lbs |
| 25 |
34-59 |
44339-25552 in-lbs |
20 |
39-68 |
30924-17736 in-lbs |
15 |
42-75 |
21536-12060 in-lbs |
| 30 |
42-75 |
43073-24121 in-lbs |
25 |
50-94 |
30151-16038 in-lbs |
20 |
58-114 |
20794-10579 in-lbs |
| 40 |
58-114 |
41587-21158 in-lbs |
30 |
61-125 |
29657-14472 in-lbs |
25 |
75-125 |
20101-12060 in-lbs |
| 50 |
75-125 |
40201-24121 in-lbs |
40 |
89-120 |
27102-20101 in-lbs |
30 |
99-125 |
18276-14472 in-lbs |
OUTPUT BORE OPTIONS
| BORE |
ITEM |
BORE |
ITEM |
| 2-1/2″ |
602643 |
2-11/16″ |
602641 |
| 2-7/8″ |
602645 |
2-15/16″ |
602646 |
| 3″ |
602647 |
3-7/16″ |
602648 |
OTHER OPTIONS
| MOTOR MOUNT |
602613 |
| BACKSTOP ASSEMBLY |
602618 |
| BELT GUARD |
602655 |
