Description
18.37:1 SIZE 47 2 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL47-20/1-145TC
- Box Size 47
- Stages 2
- Nominal Ratio 20:1
- Actual Ratio 18.37:1

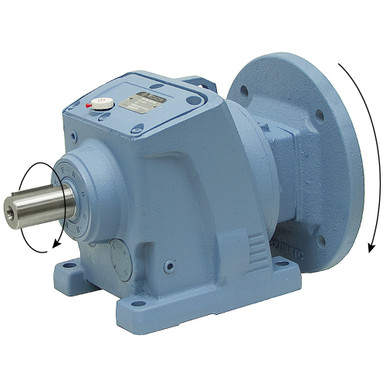

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 95 RPM
- Input Hp 2 Hp Max
- Output Torque 1250 in.-lbs. Max
- Over-Hung Load 690 lbs. Max
- Service Class III
- Motor Mount 145TC
- Output Shaft 1.25″ dia. x 2.36″ long keyed, 1/4″ wide keyway, shaft end tapped 1/2″-13
- Base Mount Four 0.55″ holes on 6.5″ x 5.31″ centers
- Shpg. 50 lbs.
