18.61 cu in Hydraulic Motor Hydro Custom BM5A-FACBDCD

Description

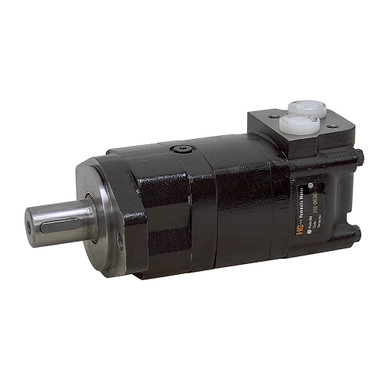

18.61 cu in Hydraulic Motor Hydro Custom BM5A-FACBDCD
Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM5A-FACBDCD
• Manufacturer Part Number CUM 351-0637
• Displacement 18.61 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    2900 PSI cont.
    3480 PSI int.
• Torque
    5967 in-lbs. cont.
    6851 in-lbs. int.
• Speed
    246 RPM cont.
    365 RPM int.
• Flow
    20 GPM cont.
    30 GPM int.
• Mount SAE A 2 Bolt
• Shaft 1.25″ x 1.811″ long w/ 5/16″ woodruff key, end tapped 3/8″-16
• Ports SAE 10
• Case Drain SAE 4
• Size 11.943″ x 3.74″ x 5.118″
• Shpg. 30 lbs.
