Description

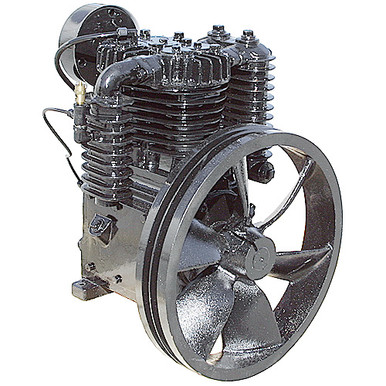

CAST IRON 2 STAGE COMPRESSOR
Brand new, Compressor Source cast iron compressor designed for heavy duty applications where high air volume and pressure are required along with extra long life. All cast iron including inner and after coolers to reduce air temperature. Low speed gives quieter operation, less vibration. Complete with oil sight glass, unloader valve (for no-load starting) and safety pop off valve.
Ships without oil! Add compressor oil prior to use.
SPECIFICATIONS
- Brand Compressor Source
- Model Number CS1105T
- Cylinders 2
- Two Stage
- Flow 19 CFM
- Pressure 175 PSI max.
- Power Reqd. 5 HP
- Speed 705-900 RPM
- Rotation CCW
- Bore/Stroke
1st Stage 4.125″ X 3.5″
2nd Stage 2.125″ X 3.5″ - Cooling Fan/Pulley
- Flywheel 17″ dia, Two B belt grooves
- Ports 3/4″ NPT
- Mount 9.02″ x 7.76″
- Size 17″ X 19″ X 21″
- Shpg. 250 lbs.
| Replacement Inlet Filter Assembly for Items 400100, 401001 Solberg FS-14-100 | 400298 |
| Replacement A424 Inlet Filter Element | 400297 |
