Description

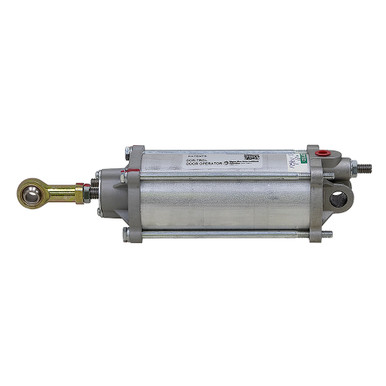

2.5″ x 3.75″ x 0.5″ AIR CYLINDER
New. Vapor Bus International 5823032805, tie-rod, double acting air cylinder. DOR-TROL door operator.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 3.75″
- Gland Retainer 4-Hole
- Pressure 200 PSI max.
- Rod Dia. 0.5″
|
- Ports 1/8″ NPT
- Retracted Length 9.5″
- Gland Face to Rod Pin Center 2.125″
- Shpg. 3 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 0.4″
- Pin-Center-To-Swivel Eye-End 0.5″
- Swivel Eye Width 0.499″
- Pin Hole 0.376″
|
- Base End Tang
- Width 0.996″
- Pin-Center-To-Tang-End 0.481″
- Pin Hole 0.513″
|
