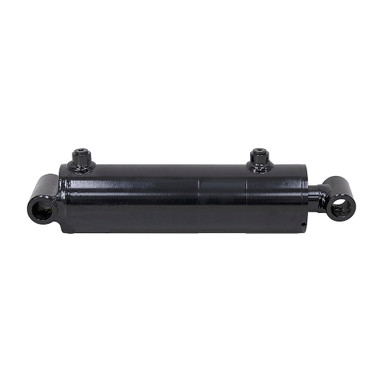

2.5" x 6" x 1.125" Double Acting Hydraulic Cylinder Bailey 320426

2.5″ x 6″ x 1.125″ Double Acting Hydraulic Cylinder Bailey 320426

Original price was: $109.95.Current price is: $27.49.

SKU: 906441 Category:

Description

2.5″ x 6″ x 1.125″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 320-426, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5″ x 6″
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 1.125″
  • Ports SAE 4
  • Retracted Length 12.125″
  • Gland Face to Rod Pin Center 1.4″
  • Shpg. 15 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 1.25″
  • Width 2″
  • Pin Hole 0.75″
  • Base End Cross-Tube
  • O.D. 1.25″
  • Width 3″
  • Pin Hole 0.75″
