Description

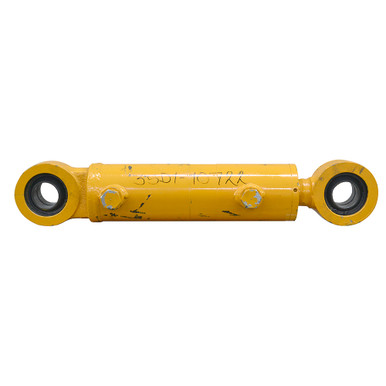

2.949″(75mm) x 4.906″(125mm) x 1.575″(40mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder model 35D1-10722.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.949″(75mm) x 4.906″(125mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.575″(40mm)
|
- Ports BSPP 1/2″-14
- Retracted Length 19.25″
- Gland Face to Rod Pin Center 3″
- Shpg. 42 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.973″
- Pin-Center-To-Swivel Eye-End 2.008″
- Swivel Eye Width 1.574″
- Pin Hole 1.578″(40mm)
|
- Base End Swivel Eye
- Width 1.958″
- Pin-Center-To-Swivel Eye-End 1.94″
- Swivel Eye Width 1.573″
- Pin Hole 1.578″(40mm)
|
