Description

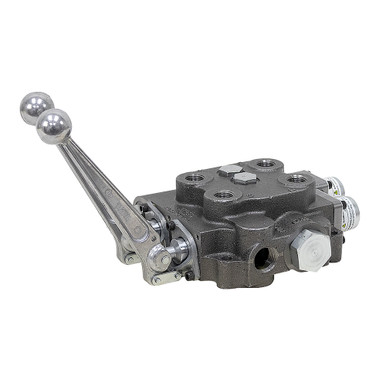

2 SPOOL DOUBLE ACTING DIRECTIONAL CONTROL VALVE
Brand new CROSS BA2A1XAG3EA0 series directional control valve with first spool float for operating double acting cylinders. Features include built-in adjustable pressure relief valve, open center, side inlet/outlet and top work ports. Intergral load holding check valves. Can be converted to power beyond.
SPECIFICATIONS
- Brand Cross Mfg.
- Model SBAF2
- Cross Item 143799
- Open Center
- Spools Two
- Flow 30 GPM max.
- Pressure 2500 PSI max.
- Relief Valve Adjustable 1500-3000 psi (set at 2000 psi)
- In/Out Ports 3/4″ NPT
- Work Ports 1/2″ NPT
- Mount Three, 3/8″ dia. holes
- Size 13.25″ x 7.3″ x 7.13″
- Shpg. 24 lbs.
Spool Details:
Spool 1 Double-acting cylinder spool, spring to center w/ 4th position float detent
Spool 2 Double-acting cylinder spool, spring to center
