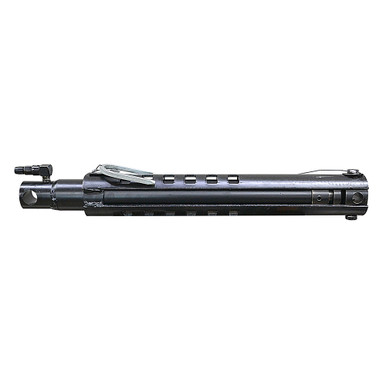

2" x 14.5" x 1" Double Acting Hydraulic Cylinder Volvo Heavy Truck mfg. G2071792

2″ x 14.5″ x 1″ Double Acting Hydraulic Cylinder Volvo Heavy Truck mfg. G2071792

Original price was: $89.95.Current price is: $26.99.

SKU: 906324 Category:

Description

2″ x 14.5″ x 1″ HYDRAULIC CYLINDER
Unused old inventory. Volvo Heavy Truck mfg. G2071792, welded, double acting hydraulic cylinder. Rod end has a manual six position extension lock with an adjustable range between 7″ to 14.5″ at 1.5″ increments. Locking pin included. Extend port has a JIC 5 male adaptor fitting installed and the retract port has a JIC 4 male adaptor fitting installed.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2″ x 14.5″
  • Gland Retainer Welded
  • Pressure 2500 PSI max.
  • Rod Dia. 1″
  • Ports 1/4″ NPT
  • Retracted Length 22.75″
  • Gland Face to Rod Pin Center 0.75″
  • Shpg. 26 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 2.625″
  • Pin Center to Base End 0.778″
  • Pin Hole 0.75″
  • Base End Thru-Hole
  • Width 1.875″
  • Pin Center to Base End 0.759″
  • Pin Hole 1″
