22.88 cu in Hydraulic Wheel Motor Hydro Custom BMEW-HWGABA-F

Description

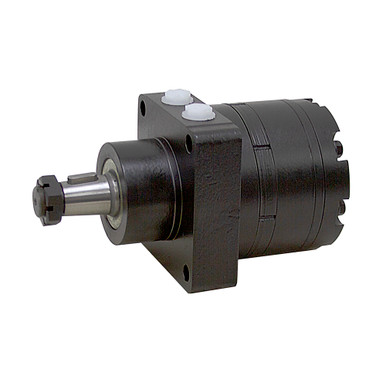

22.88 cu in Hydraulic Wheel Motor Hydro Custom BMEW-HWGABA-F
Brand new Hydro Custom BMEW series hydraulic wheel motor. Gerolor power element. Needle bearings allow for high axial and radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BMEW-HWGABA-F
• Manufacturer Part Number CUM 392-3006F
• Displacement 22.88 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    3000 PSI cont.
    3480 PSI int.
• Torque
    8762 in-lbs. cont.
    10089 in-lbs. int.
• Speed
    200 RPM cont.
    240 RPM int.
• Flow
    19.8 GPM cont.
    23.7 GPM int.
• Mount 4 Bolt wheel mount on 5.81″ bolt circle with 3-1/4″t O.D. pilot
• Shaft 1-1/4″ tapered x 4.094″ long w/5/16″ parallel key, end threaded 1″-20 with castle nut
• Ports SAE 10
• Size 11.062″ x 4.994″ x 4.994″
• Shpg. 32 lbs.
