Description

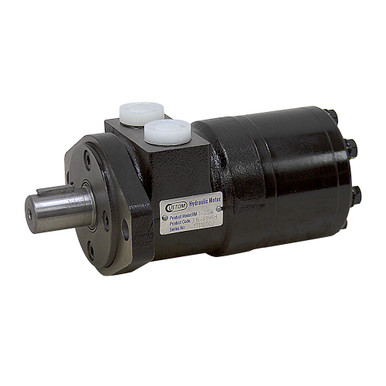

24.4 cu in HYDRAULIC MOTOR HYDRO CUSTOM BM1H-JAADADB
Brand new, Hydro Custom BM1 series hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn H series and Danfoss DH series motors.
SPECIFICATIONS
- Brand Hydro Custom
- Model BM1H-JAADADB
- Manufacturer Part Number CUM 316-0397H
- Displacement 24.4 cu in
- Motor Type Gerolor
- Rotation Reversible
- Pressure
1015 PSI cont.
1522 PSI int. - Torque
3845 in-lbs. cont.
4694 in-lbs. int. - Speed
140 RPM cont.
180 RPM int. - Flow
15 GPM cont.
20 GPM int. - Mount SAE A 2 bolt
- Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
- Ports 1/2″ NPT
- Case Drain SAE 4
- Size 9.905″ x 3.622″ x 5.118″
- Shpg. 22 lbs.
