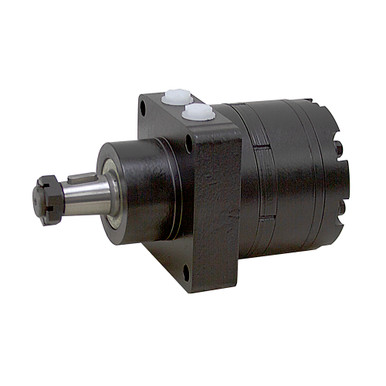

28.98 cu in Hydraulic Wheel Motor Hydro Custom BMEW-IWGABA-F

Description

28.98 cu in Hydraulic Wheel Motor Hydro Custom BMEW-IWGABA-F
Brand new Hydro Custom BMEW series hydraulic wheel motor. Gerolor power element. Needle bearings allow for high axial and radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BMEW-IWGABA-F
• Manufacturer Part Number CUM 392-3007F
• Displacement 28.98 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    2540 PSI cont.
    2750 PSI int.
• Torque
    9824 in-lbs. cont.
    10691 in-lbs. int.
• Speed
    150 RPM cont.
    180 RPM int.
• Flow
    19.8 GPM cont.
    23.7 GPM int.
• Mount 4 Bolt wheel mount on 5.81″ bolt circle with 3-1/4″ O.D. pilot
• Shaft 1-1/4″ tapered x 4.094″ long w/5/16″ parallel key, end threaded 1″-20 with castle nut
• Ports SAE 10
• Size 11.416″ x 4.994″ x 4.994″
• Shpg. 33 lbs.
