Description

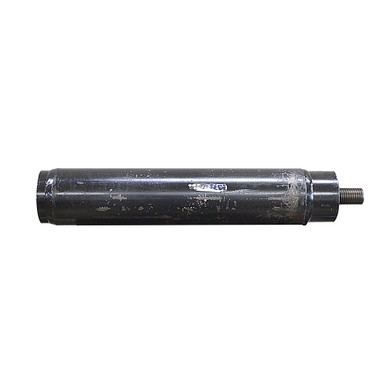

3.175″ x 12″ x 1.125″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. P & H Crane Division 1038Z171, welded, double acting, hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.175″ x 12″
- Gland Retainer Welded
- Pressure 2500 PSI max.
- Rod Dia. 1.125″
|
- Manifold Ports 0.44″ dia. port hole on 1.796″ centers
- Manifold mount Four, 3/8″-24 TPI threaded holes on 1.97″ x 1.97″ centers at base end
- Retracted Length 20″
- Gland Face to Rod Pin Center 1.75″
- Shpg. 32 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread size-Pitch 1-1/8″-12 TPI
- Thread Length 1.5″
|
- Base End Flat with aligning hole
- Aligning Hole Dimensions 0.95″ dia. x 0.682″ deep
|
