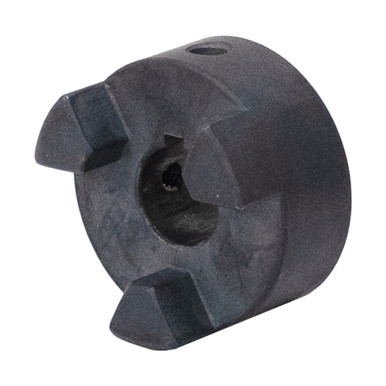

3-PIECE FLEXIBLE COUPLING HALF
New L090 0.75″ 3-piece flexible coupling half. Ideal for connecting engines or electric motors to pumps, drive shafts, etc. A complete 3-piece coupling consists of two coupling halves from the same series and one corresponding flexible insert. Coupled length is the overall length of an assembled 3-piece coupling. Coupler ratings with rubber insert.
SPECIFICATIONS
- Series L090
- Torque 114 in-lbs max.
- Speed 9,000 RPM max.
- Bore 3/4″ keyed w/ setscrew
- Length Through Bore 0.82″
- Keyway Size 3/16″ wide x 3/32″ deep
- O.D. 2.11″
- Coupled Length 2.125″
- Shpg 0.65 lbs.
