3.5" x 15.25" x 1.75" Double Acting Hydraulic Cylinder 73721000003

3.5″ x 15.25″ x 1.75″ Double Acting Hydraulic Cylinder 73721000003

Original price was: $104.95.Current price is: $26.24.

SKU: 906326 Category:

Description

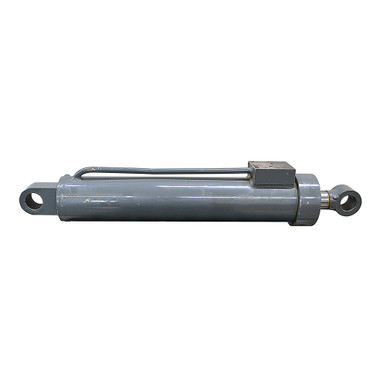

3.5″ x 15.25″ x 1.75″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped 73721000003.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5″ x 15.25″
  • Gland Retainer Externally threaded
  • Pressure 2500 PSI max.
  • Rod Dia. 1.75″
  • Manifold Ports Two, 0.306″ dia. holes on 1.113″ centers
  • Manifold Mount Four, 1/4″-20 TPI threaded holes on 2.5″ x 2.767″ centers
  • Manifold Dimensions 3″ x 3.5″
  • Retracted Length 27.75″
  • Gland Face to Rod Pin Center 3.375″
  • Shpg. 60 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.759″
  • Pin-Center-To-Tang-End 1.258″
  • Pin Hole 1.5″
  • Base End Tang
  • Width 1.75″
  • Pin-Center-To-Tang-End 1.295″
  • Pin Hole 1.5″
