Description

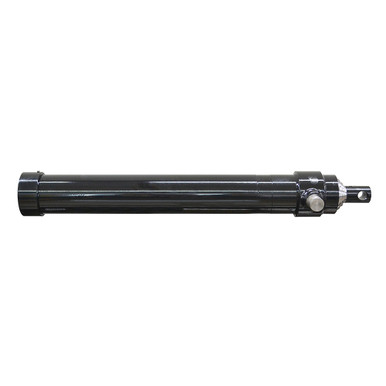

3.625″ x 90″ SINGLE-ACTING TELESCOPING CYLINDER
Brand new, Maxim 210704, single-acting, three-stage, 12 ton, telescoping cylinder. Port located in the rod.
| SPECIFICATIONS |
- Single Acting, Telescoping
- Main Cyl Bore x Total Stroke 3.625″ X 90″
- Number of Stages 3
- Pressure 2500 PSI max.
- Rod Dia. 2″
|
- Ports 1/2″ NPT
- Retracted Length 6″
- Shpg. 184 lbs.
|
| END MOUNTINGS |
- Rod End Thru-Hole
- Width 1.97″
- Pin Center to Base End 1″
- Pin Hole 1″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 10.46″ / 7.6″
- Pin-Center-To-Rod Pin Center 6″
- Pin Center To Base End 32.6″
- Pin Diamter 1.5″
|
