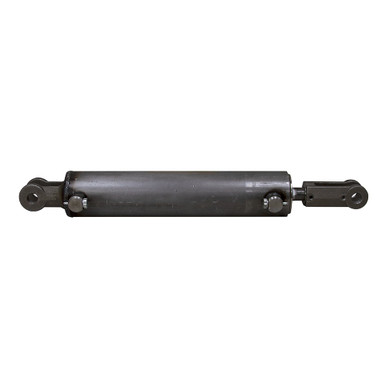

3.75" x 16" x "1.375 Double Acting Hydraulic Cylinder Monarch Industries 658201 37WD16-137

3.75″ x 16″ x “1.375 Double Acting Hydraulic Cylinder Monarch Industries 658201 37WD16-137

Original price was: $99.95.Current price is: $29.99.

SKU: 905974 Category:

Description

3.75″ x 16″ x 1.375″ HYDRAULIC CYLINDER
New. MONARCH INDUSTRIES 658201 37WD16-137, welded, double acting hydraulic cylinder. Ports have bleeder valves. Cylinder built to accept an internal hall effect position sensor to measure length of rod extension.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.75″ x 16″
  • Gland Retainer Snap ring
  • Pressure 3000 PSI max.
  • Rod Dia. 1.375″
  • Ports M16 x 1.5
  • Retracted Length 29.63″
  • Gland Face to Rod Pin Center 5.98″
  • Shpg. 47 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.619″
  • Inside Width 1.107″
  • Throat Depth 3.625″
  • Pin Hole 1″
  • Base End Clevis
  • Outside Width 2.85″
  • Inside Width 1.516″
  • Throat Depth 2.75″
  • Pin Hole 1″
