Description

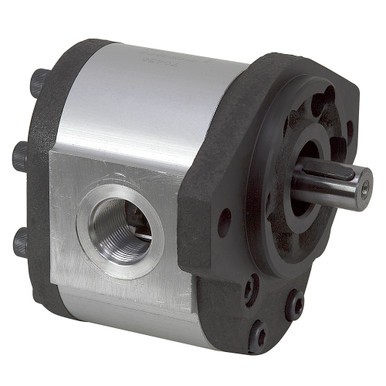

3.84 CU IN DYNAMIC GP-F25-60-P-C HYDRAULIC PUMP
Brand new. Dynamic GP-F25-60-P-C hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.
SPECIFICATIONS
- Manufacturer Dynamic
- Model Number 70441
- Build Number GP-F25-60-P-C
- Disp. 3.84 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
3625 PSI Peak - Speed:
1500 RPM Rated
2800 RPM Max. - Flow:
23.19 GPM Rated
43.28 GPM Max. - Mount 2 bolt SAE B
- Shaft 7/8″ dia. x 1.81″ long with 1/4″ wide keyway
- Rqd. Filtration 25 micron
- Inlet Port SAE 16
- Outlet Port SAE 12
- Size 6.22″ x 6.85″ x 6.32″
- Shpg. 24 lbs.
