Description

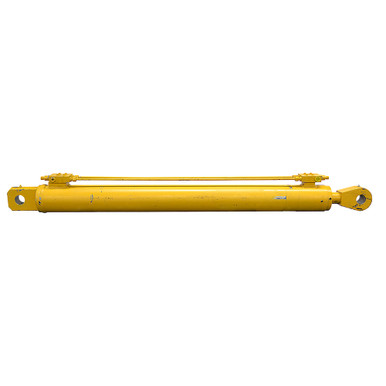

3.903″(100mm) x 43.5″(1104.9mm) x 2.198″(55mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Potain F-80467, welded, double acting hydraulic cylinder. Two unknown adjustable check valves, one on each end of the cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.903″(100mm) x 43.5″(1104.9mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.198″(55mm)
|
- Ports 3/8″ NPT
- Retracted Length 61.75″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 253 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.743″
- Pin-Center-To-Tang-End 2.148″
- Pin Hole 1.780″(45mm)
|
- Base End Tang
- Width 2″
- Pin-Center-To-Tang-End 2.177″
- Pin Hole 1.78″(45mm)
|
