Description

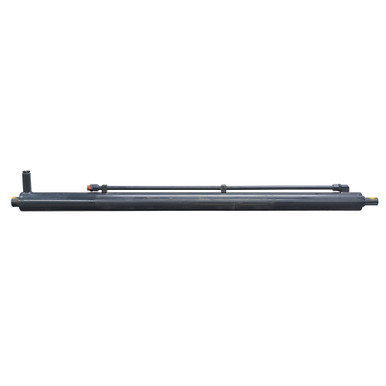

3.93″(100mm) x 69.125″(1755mm) x 2.76″(70mm) DA HYD CYL
Unused old inventory. LKALMAR- CARGOTEC double acting hydraulic cylinder. Cylinder has flow limiter in extend port marked SB43C-115/150. Numbers on cylinder 923959.0005.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.93″(100mm) x 69.125″(1755mm)
- Barrel Thickness 0.315″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 2.76″(70mm)
|
- Extend Ports BSPP 1″
- Retract Port ORFS 16
- Retracted Length 87.75″
- Gland Face to Rod Pin Center 4.25″
- Shpg. 299 lbs.
|
| END MOUNTINGS |
|
- Rod End Plain
- Dimensions 1.971″ dia. x 2.953″ long w/ 0.088″ snap ring groove and M12-1.75 tapped end 3.27″ overall length
|
- Base End Thru-Hole
- Dimensions 2.366″ dia. x 2.167″ long w/ 0.625″ pin hole
|
