Description

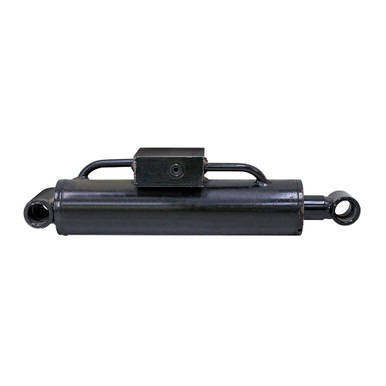

3″ x 10″ x 1.5″ DOUBLE-ACTING HYDRAULIC CYLINDER
New, Bailey 320-246 welded double-acting hydraulic cylinder. Cylinder has two SUN CBCA LHN adjustable counterbalance valves, one at the extend and the other at retract port.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 10″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports SAE 6
- Retracted Length 18″
- Gland Face to Rod Pin Center 2.625″
- Shpg. 34 lbs.
|
| END MOUNTINGS |
|
- Rod End Cross-Tube
- O.D. 1.75″
- Width 2.25″
- Pin Hole 1.25″
|
- Base End Cross-Tube
- O.D. 1.76″
- Width 3.75″
- Pin Hole 1.25″
|
