3" x 5.125" x 1" Double Acting Hydraulic Cylinder Clark 390642

3″ x 5.125″ x 1″ Double Acting Hydraulic Cylinder Clark 390642

Original price was: $99.95.Current price is: $29.99.

SKU: 907149 Category:

Description

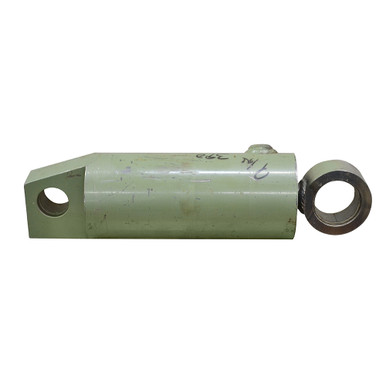

3″ x 5.125″ x 1″ HYDRAULIC CYLINDER
Unused old inventory. CLARK 390642, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3″ x 5.125″
  • Gland Retainer Snap ring
  • Pressure 2500 PSI max.
  • Rod Dia. 1″
  • Rod Thickness 1″
  • Extend Port SAE 8
  • Retract Port 1/8″ NPT
  • Retracted Length 11.25″
  • Gland Face to Rod Pin Center 1.75″
  • Shpg. 19 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.493″
  • Pin-Center-To-Tang-End 1.375″
  • Pin Hole 1.75″
  • Base End Tang
  • Width 1.5″
  • Pin-Center-To-Tang-End 1.113″
  • Pin Hole 1.125″
