Description

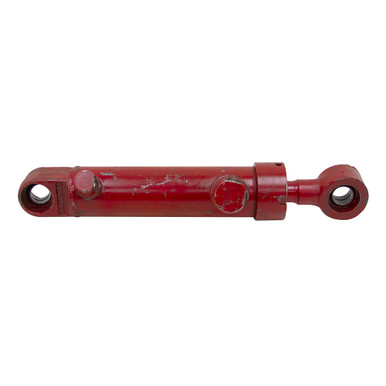

3″ x 6-1/8″ x 1-1/2″ DA HYD CYL
Unused Old Inventory. Welded hydraulic cylinder with externally threaded gland cap. Swivel eyes on each end. Rod end has two ports, one of these ports will need to be plugged (SAE 8 plug not included).
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3″ x 6-1/8″
- Barrel Diameter 3-1/2″
- Gland Retainer Externally threaded gland cap
- Pressure 2500 PSI max.
- Rod Dia. 1-1/2″
|
- Ports SAE 8
- Retracted Length 21-3/4″
- Gland Face to Rod Pin Center 4-3/4″
- Shpg. 45 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2″
- Pin-Center-To-Tang-End 1-3/4″
- Swivel Eye Width 1-1/8″
- Pin Hole 1-3/8″
|
- Base End Tang
- Width 2-1/2″
- Pin-Center-To-Tang-End 1-1/2″
- Swivel Eye Width 1-1/8″
- Pin Hole 1-3/8″
|
