Description
0.115 HP 120 VAC MOTOR

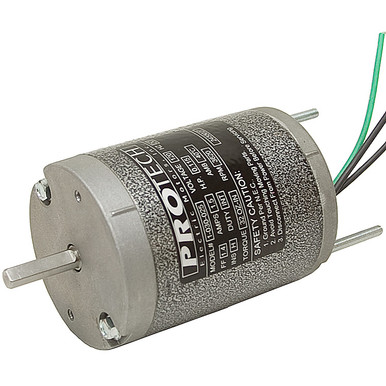

New, PROTECH model 1-030-025 permanent magnet motor. Two M5-0.8 studs extend 1-1/2″ from opposite end of face on 2-7/16″ centers. Two tapped M5-0.8 holes on 2-5/16″ centers.The motor is 120 Volts DC with a built-in bridge rectifier to operate on 120 Volts AC.
SPECIFICATIONS
- Power0.115 HP
- Voltage 120 AC
- Amperage1.5 Amps
- Speed 3620 RPM
- Rotation CCW
- Torque32 in.-oz.
- Duty Intermittent
- Mount Face
- Shaft 5/16″ diam. x 1-3/16″ w/ flat
- Size3″ diam. x 4-1/4″
- Shpg.4 lbs.
