Description

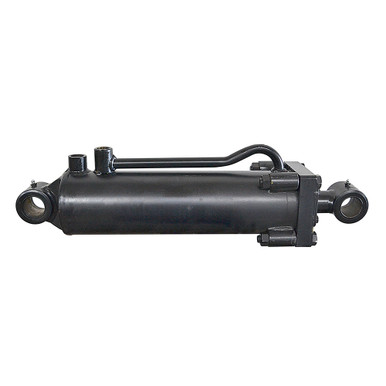

4.288″(110mm) x 13.125″(333mm) x 1.769″(45mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, labeled 6641203.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.288″(110mm) x 13.125″(333mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 1.769″(45mm)
|
- Ports 3/4″ NPT
- Retracted Length 24″
- Gland Face to Rod Pin Center 3.375″
- Shpg. 69 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.356″
- Pin-Center-To-Tang-End 1.363″
- Pin Hole 1.597″(40mm)
|
- Base End Tang
- Width 2.361″
- Pin-Center-To-Tang-End 1.382″
- Pin Hole 1.597″(40mm)
|
