Sale!
4.29"(109mm) x 53.25" x 2.75" Double Acting Hydraulic Cylinder Cargotec-Kilmar 923965.0013

4.29″(109mm) x 53.25″ x 2.75″ Double Acting Hydraulic Cylinder Cargotec-Kilmar 923965.0013

Original price was: $299.95.Current price is: $74.99.

SKU: 904672 Category:

Description

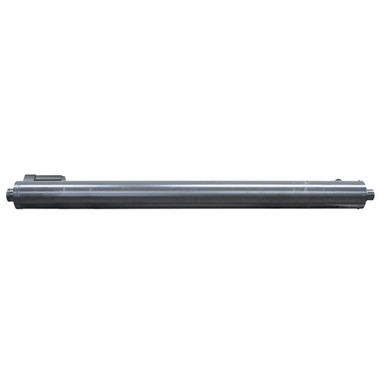

4.29″(109mm) x 53.25″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Cargotec-Kilmar Double Acting hydraulic cylinder 923965.0013.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.29″(109mm) x 53.25″
  • Barrel Thickness 0.313″
  • Gland Retainer Threaded in Gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 9″ (trunnion)
  • Gland Face to Rod Pin Center 2.75″
  • Shpg. 294 lbs.
END MOUNTINGS
  • Base End Tang
  • Width “
  • Pin-Center-To-Tang-End “
  • Pin Hole “
  • Base End Male Trunnion
  • Pin Outside/Inside Width 9.875″ / 7.5″
  • Pin-Center-To-Rod Pin Center 9″
  • Pin Center To Base End 32.25″
  • Pin Diameter 1″
