Description

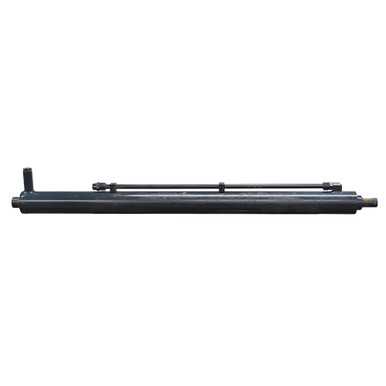

4.33″(110mm) x 59.25″(1505mm) x 3.15″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. CARGOTEC-KALMAR double acting hydraulic cylinder. Cylinder has flow limiter in extend port with numbers SB43C-115/150. Numbers on cylinder 923960-0003.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.33″(110mm) x 59.25″(1505mm)
- Barrel Thickness 0.3″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Extend Port BSPP 1″
- Retract Port ORFS 16
- Retracted Length 76.875″
- Gland Face to Rod Pin Center 4.5″
- Shpg. 317 lbs.
|
| END MOUNTINGS |
- Rod End Male Stud
- Length/Width 3.25″/1.97″
- Snap Ring Groove 0.088″
- Tapped M12-1.75″ x 30mm
|
- Base End Thru-Hole
- Thru-Hole Width 2.37″
- Pin-Center-To-Thru-Hole-Base-End 1″
- Pin Hole 5/8″
|
